Control system / tape transport electronic overhaul kit for Studer A67 & B67
Nagravox
$300.00 AUD
Essential Capacitor and Electronic Service Kit for Studer B67 Mk1 and Mk2
PSU, Tape Transport & Control and Suppression Capacitor and mains filter overhaul kit - For All Studer A67 and B67 mk 1 & 2
Don’t waste your time replacing just one or two capacitors on machines that are now 25 - 40 years old, replace ALL the troublesome electrolytics, tantalums and suppression capacitors. Usually the old high voltage capacitors associated with the motors and tape drive will also be shot electrically and often even visually. Some capacitors may test ok on a low voltage modern tester, however capacitors usually need to be tested after they have operated for at least 10 hours (after being discharged and stored for many years) at working voltage and then tested under actual working voltage conditions. Modern testers cant do this. For such relatively low cost components its prudent to just replace the lot. PLEASE NOTE: If you have a 30"/sec machine, please tell me at time of purchase as the capstan motor takes a different capacitor to the more common standard 15"/sec machine.
PSU, Tape Transport & Control and Suppression Capacitor and mains filter overhaul kit - For All Studer A67 and B67 mk 1 & 2
Don’t waste your time replacing just one or two capacitors on machines that are now 25 - 40 years old, replace ALL the troublesome electrolytics, tantalums and suppression capacitors. Usually the old high voltage capacitors associated with the motors and tape drive will also be shot electrically and often even visually. Some capacitors may test ok on a low voltage modern tester, however capacitors usually need to be tested after they have operated for at least 10 hours (after being discharged and stored for many years) at working voltage and then tested under actual working voltage conditions. Modern testers cant do this. For such relatively low cost components its prudent to just replace the lot. PLEASE NOTE: If you have a 30"/sec machine, please tell me at time of purchase as the capstan motor takes a different capacitor to the more common standard 15"/sec machine.
This kit contains parts for the very important power supply, tape control and transport functions together and should be considered the base kit to start off with:
- Replacement capacitors for all the electrolytics including large PSU can type caps
- Replacement for all tantalum capacitors
- Brand new specially manufactured non polarised motor capacitors

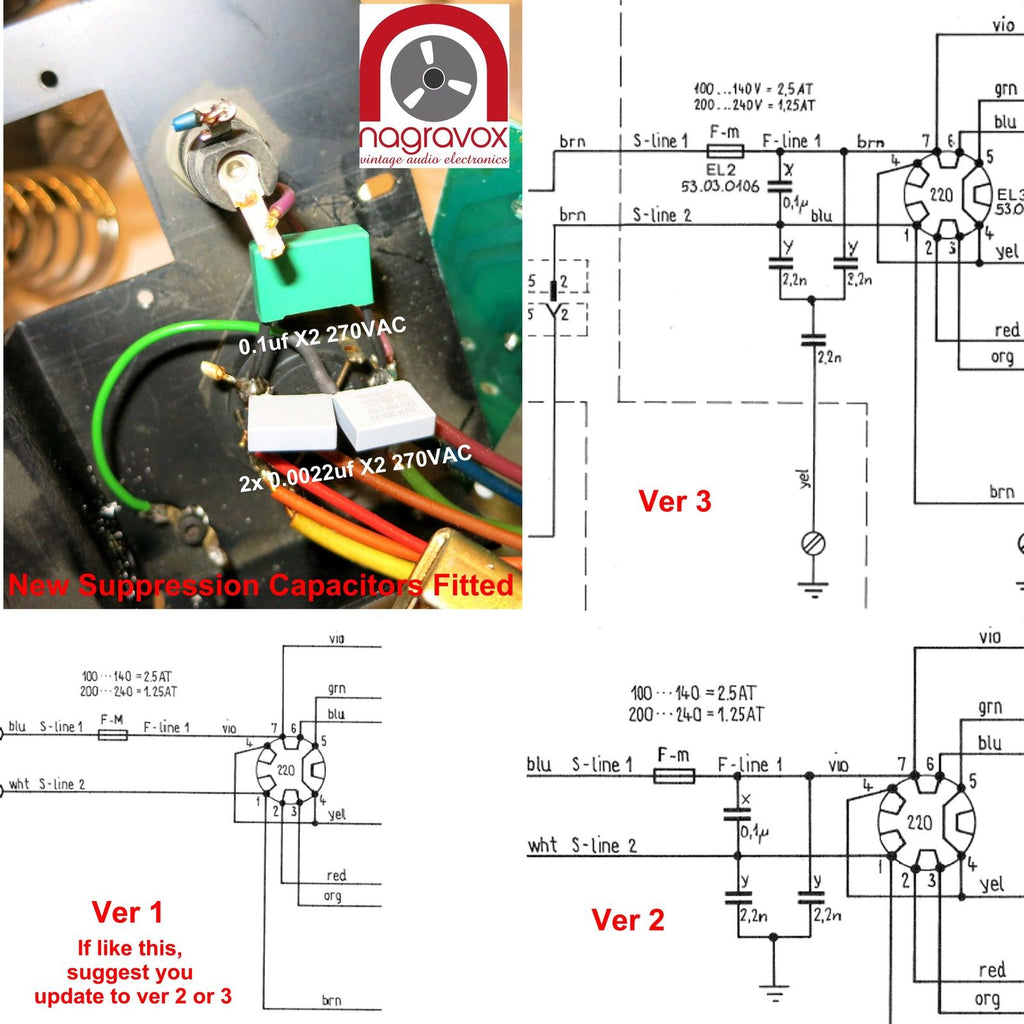

- All troublesome paper capacitors on drive control, switching and mains suppression
- Fully enclosed cermet type preset potentiometers
- New mains filter module
This kit caters for the following circuit boards:
- Power Supply
- Stabiliser card
- Tape Drive Control using TCA561 IC's as well as the later version using discrete IC's - indeed ANY tape transport card fitted!
- Tape Tension Sensor Boards - both sides.
- Mains Filter module - we have a new ones made specially for us to the same specification
- Capstan Speed Control using TCA561 IC's as well as the later version using discrete IC's - indeed ANY capstan card fitted!
- Motor Control boards for each motor - three boards catered for
- Digital counter (for counter system)
- All motor chassis mounted motor capacitors - 5
- A comprehensive set of Nagravox service sheets / manual is provided to assist you with your overhaul.
- Factory updates
AUDIO BOARDS. Please see our audio kits for this machine.
TOTALS:- Capacitors = 89
- Preset trimmers = 2
- Modules and mounting hardware = 6
- Small “upgrade” blank labels are provided to mark your upgraded boards
