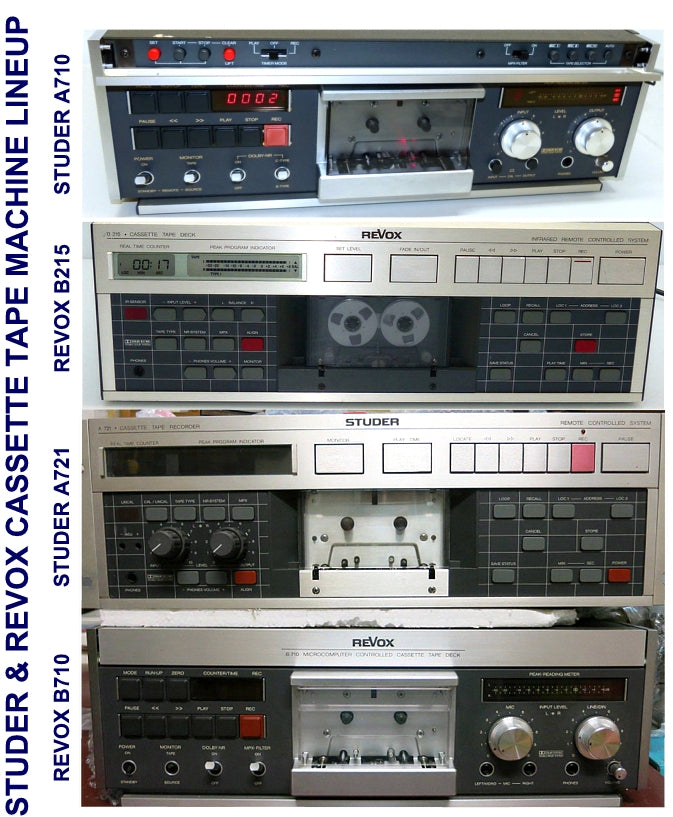

Revox Studer Cassette Tape FULL MONTY overhaul Kits A710 A721 B710 B215
NAGRAVOX FULL MONTY KITS - everything you are likely to need to restore or update your REVOX or STUDER Cassette Deck
What's the meaning of the phrase 'The Full Monty'? Complete, the whole thing. The phrase made popular from the 1997 smash hit comedy drama film of the same name. However it probably originated in about 1907 from the bespoke tailoring business in Sheffield of Sir Montague Burton, where the term was used to describe a complete three-piece suit.
Over the years customers have asked for a full kit instead of ordering individual sub kits. They also have tended to ask advice on what they should do to fully overhaul and restore their tape machines. So this is what I recommend and if a machine comes into our workshop THIS FULL SET OF KITS is what we fit. It takes into account the most likely components mechanically and electrically that may have degraded over the many years due to sitting idle or being over-worked. So, if you want to service, restore or overhaul your machine as completely as you can, this is what I recommend. Without wishing to seem that its just a 'sales spiel', of course individual sub kits are always available on their own. Please refer to the listings under the specific model section of my store. Please also see the precise details of each sub kit under its listing if you require more information on any particular sub kit.
Each model has electronic differences but there are variations based on the diameter of the two pinch rollers. You should check them. There are quite a few of these variations for the 710 series. If you need help, contact us detailing the current diameters of your pinch rollers and model no.
In summary, the PR's fitted are:
B710 mk1 and some mk2 + A710 ser no. <2521 - D 8 and 8.7mm
B710 mk2 later, B215, A721, A710 ser no.>2521 - D 2x 12.7mm
THE CASSETTE FULL MONTY. A set of applicable sub kits typically containing:
Capacitor and Trimmer replacement kit. All polar electrolytic, tantalum, non polar motor and suppression capacitors and all open type trimmer potentiometers

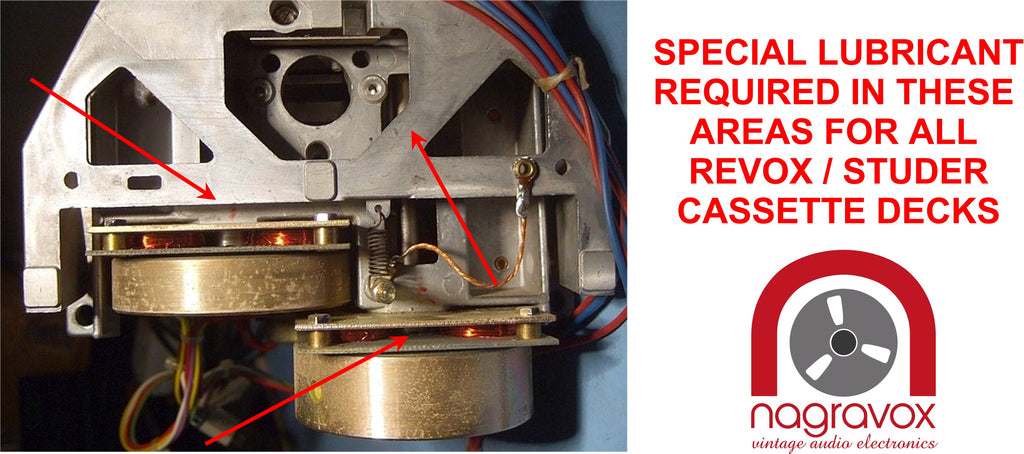

Capstan motor service lubricant and ...... + appropriate instructions!
Pinch Roller kit. - pinch roller with appropriate low friction PTFE washers, metal shims and circlips
New RCA Sockets Replace those ugly tarnished and faulty RCA sockets. Gold is standard but if you want silver send a note with order. This applies only to Revox - not Studer.
Globes or ELFL Illuminator each model has different illumination requirements. You are supplied with what's appropriate Note for ELFL illuminator standard is blue but you can request green if you like - send a note with order. The machines with LED displays do not have any globes to replace.
Separate Nagravox service sheet manuals detailing how to do it all. Lots of pictures before / after, suggestions, updates, troubleshooting.
Support service to help you in case you have questions, problems, comments. Problems are temporal events in the cosmos of life, "there are no problems only solutions".
Coming soon - the kitchen sink with gold plated taps ...... (just kidding).
GENERAL INFORMATION ON OUR KITS
Our kits contain specially sourced, new, freshly manufactured components from reliable manufacturers whom we have been dealing with for many years. No NOS (new old stock) or 2nd hand items!! The motor capacitors are specially manufactured for us for Revox tape deck motors as are large power supply can type electrolytics. The audio signal path capacitors are specially selected low noise, low leakage / high stability types that we have specifically tested and sourced to be the most appropriate available. The preset pots are cermet fully enclosed guaranteeing decades of trouble free operation and adjustment.
